MODEL LVT-1300
 |
 |
 |
 |
| Please follow the diagrams and instructions below for the proper mounting of your new model LVT-1300 towing mirrors. |

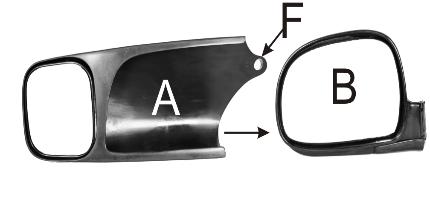

1. Slip towing mirror (A) over your existing vehicle mirror
(B) until it seats, taking care to match right and left
hand mirrors.
(B) until it seats, taking care to match right and left
hand mirrors.

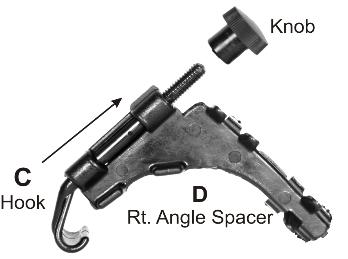

2. Slide one of the two supplied hooks (C) thru one of the two supplied Right Angle Spacers (D) as shown.

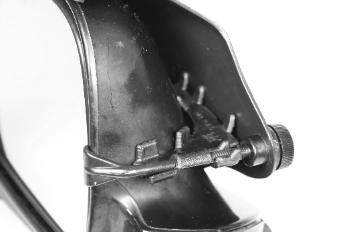

3. Insert both (C) and (D) into the gap between the outside
of your existing mirror and the inside of your towing
mirror, taking care to slip the hook over the lip of your
existing mirror as shown.
of your existing mirror and the inside of your towing
mirror, taking care to slip the hook over the lip of your
existing mirror as shown.
4. While steadying the towing mirror in position, insert one
of the two supplied knobs thru the receiving hold (F) in
the towing mirror and onto the threaded end of the hook
(C). Tighten this know until the towing mirror is solid and
does not move with firm pressure.
of the two supplied knobs thru the receiving hold (F) in
the towing mirror and onto the threaded end of the hook
(C). Tighten this know until the towing mirror is solid and
does not move with firm pressure.
